Tornado ACS Cleaning System

The Tornado ACS is a closed operation system.  Dust and tiny particles are contained within the system,  so the operator has no need to worry about wearing a mask or gloves !

Use Anywhere
& Anytime

No Second Contamination

Everyone Cleans Like Expert

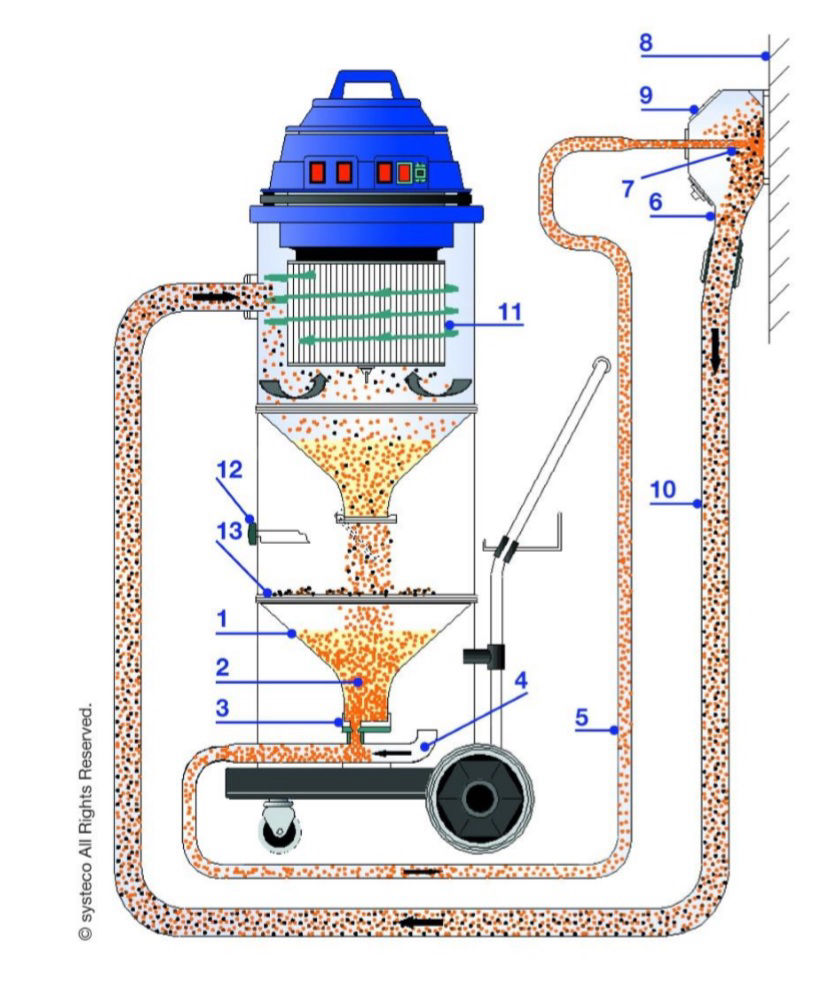

1st   : Vaccum Blasting

The Granules are being ejected ( 7 ) to the pollutant surface via the vacuum hood .

2nd : Filtering

Through the vacuum hood, the pollutants and granules will be transferred back into the main unit for filtering process ( 11 ).

3rd  : Ready for next cleaning cycle

Pollutants will be filtered out and the clean granules will be transferred to the next storage tank ( 1 ) for the next ejection again.

Mobirise

6 Hours Non-stop Operation

( allow 30 mins cool down time every 6 hrs )

Coverage up to 5m2 / Hour

( Fully Covered )

Advanced Filtering System

The special designed filter separates particles to the smallest of  0.1 Micron from the pollutants , making sure that no matter indoor or outdoor, Tornado ACS Cleaning System is save to use and does not cause second contaminations to the surrounding areas.

Easy to Clean

Filter Use up to 2K Hours

CE Approved

Mobirise

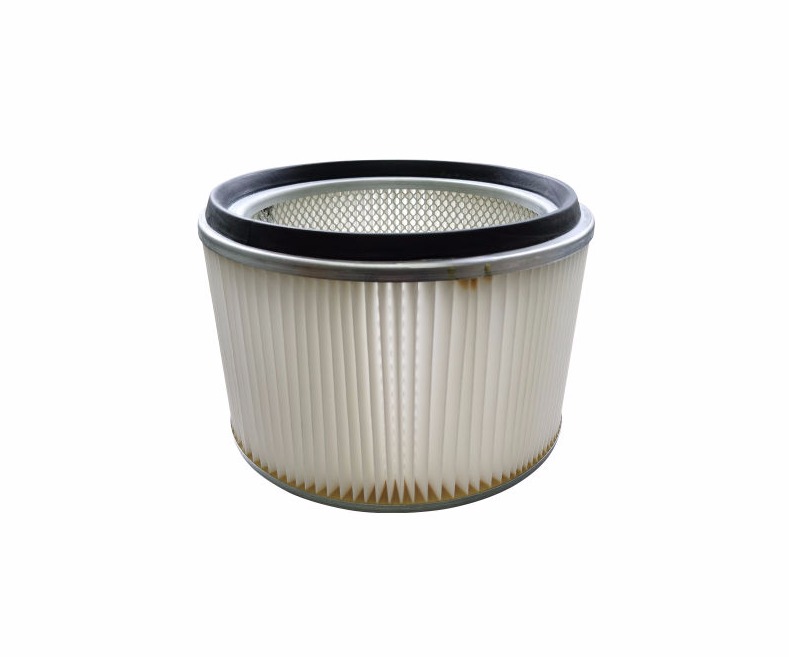

Standard Filter

 Filter Efficiency of 0.1 Micron, 99.9%

Daily Normal Cleaning Applications
* Polyester 2.7 Decitex

Mobirise

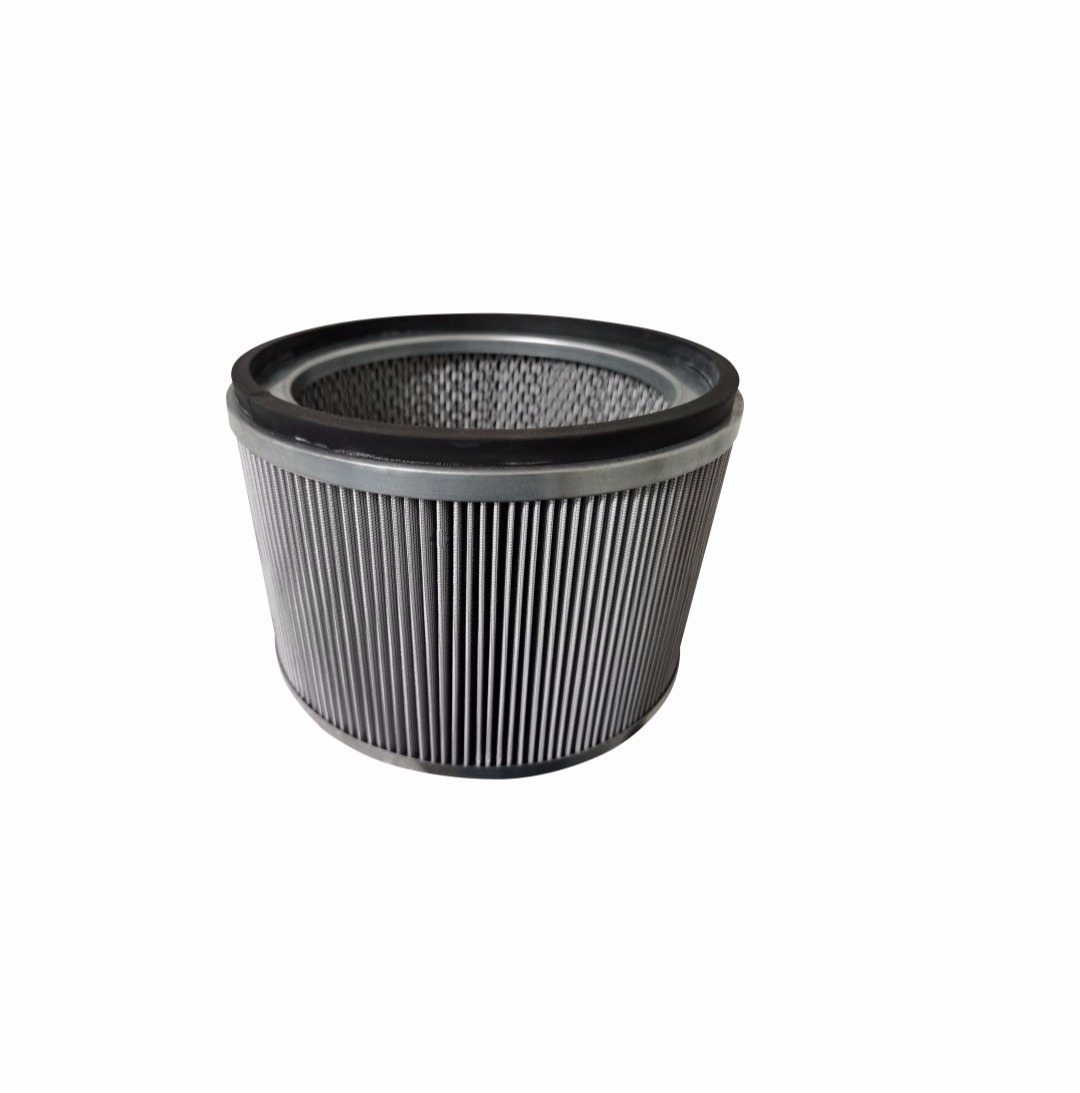

High Performance Filter

Filter Efficiency 0.1 Micron, H14: 99.995%

Fire Restoration or Hermetic Space Applications
* 100% Micron Polyester

Technical Specification
Voltage :220 / 50 Hz
Power Input :max. 3.500 W
Air Output :3 x 60 l/sec.
Power Cable Length :7 m
Net Weight :41 kg
Height incl. Trolley :1.300 mm
Length Overall :620 mm
Width Overall :610 mm
Length of Hose :4.5 m
Filling Quantity :10 Liter max.
Granule Through-put :20-80 l/h
Granules Consumption :0,2-0,4 l/h
Setup Time :ca. 5 min
Dismounting Time :ca. 5 min (incl. cleaning)
Noise Level :max. 75db

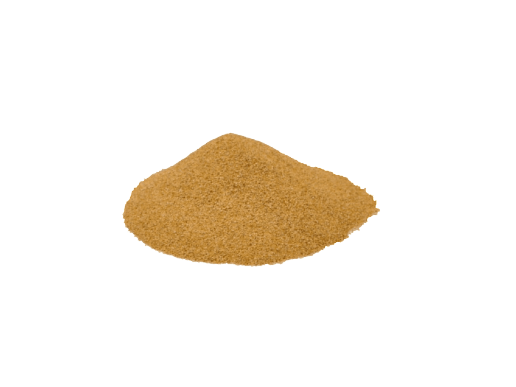

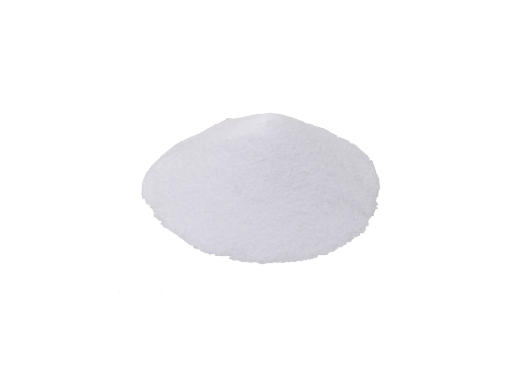

Granules

Tornado ACS utilizes small cleaning granulates at high speed to remove surface pollutants without using water or chemicals.

No Chemicals

No Hazardous

100% ECO Products

Mobirise

Nutshell

Suitable for :
- Polished and matt Granite
- Glazed Ceramics Tiles
- Polished Marble
- Plastic Plaster
- Metals

Mobirise

Glass Jet

Suitable for :
- Sand Stone
- Lime Stone
- Clay Bricks
- Natural Granite
- Artificial Stone

Mobirise

Asilit

Suitable for :
- Natural Granite
- Hard Stone
- Concrete Slab
- Washed Concrete
- Concrete Bricks

Granules Packaging Data
Packing8 Liters / Pail
CoverageApprox.  70M2 / 8 Liters / Pail
StorageKeep out of Moisture
Download Granules Application Table

Fittings & Acessories

Mobirise

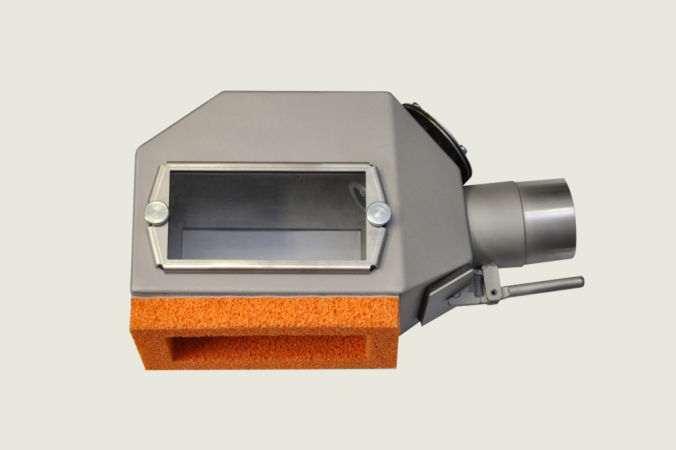

Small Hood
(170x100mm)

Mobirise

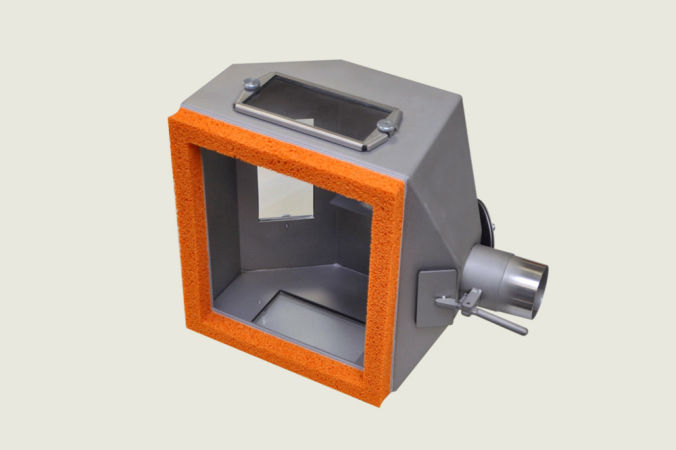

Standard Hood (170x170mm)

Mobirise

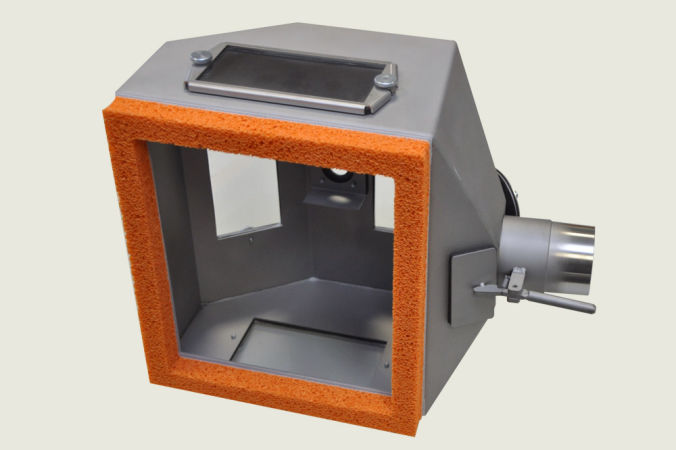

Large Hood
(260x230mm)

Mobirise

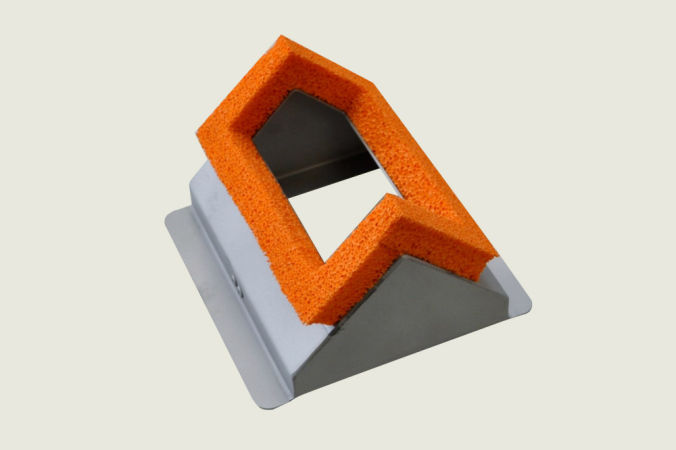

Internal Corner

Mobirise

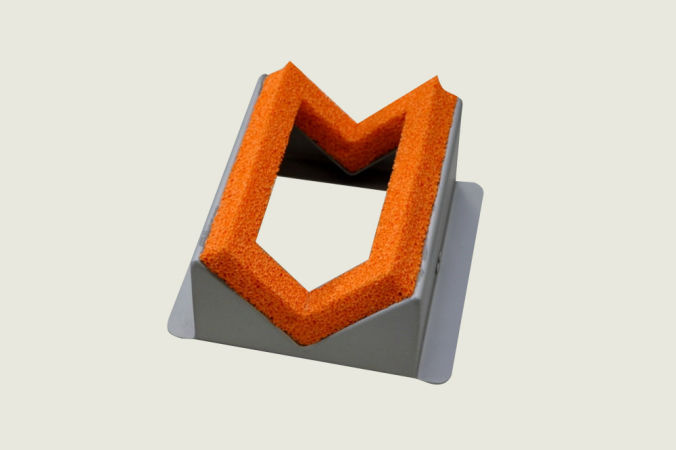

External Corner

Mobirise

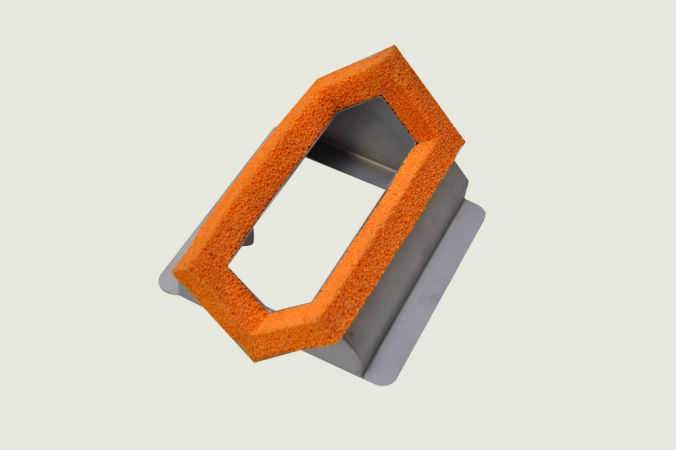

Cross Corner

Mobirise

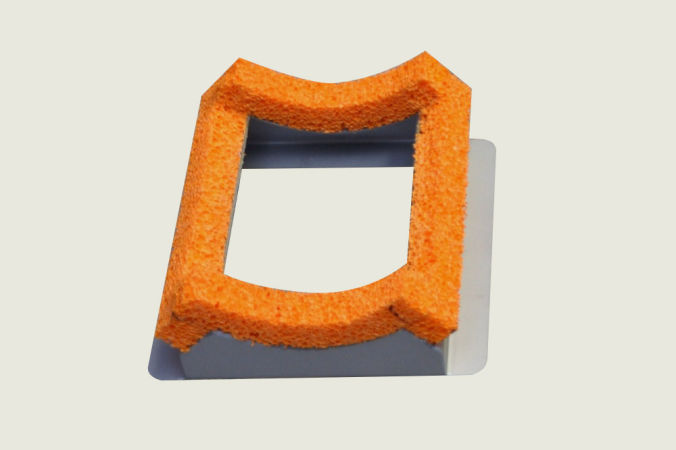

Round (Inside)

Mobirise

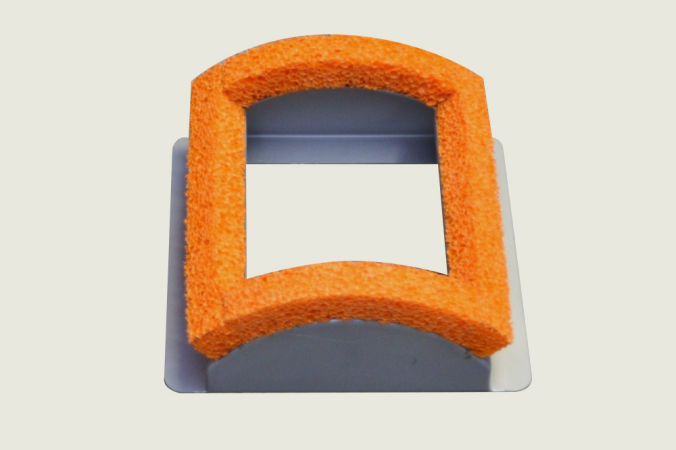

Round (Outside)

Mobirise

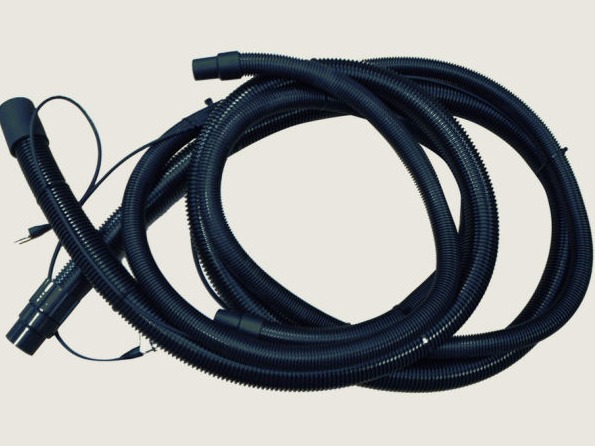

Extension Hose 4.5M

Mobirise

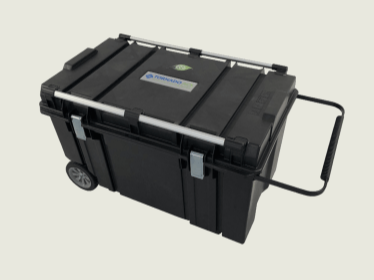

Elite Gear Box
